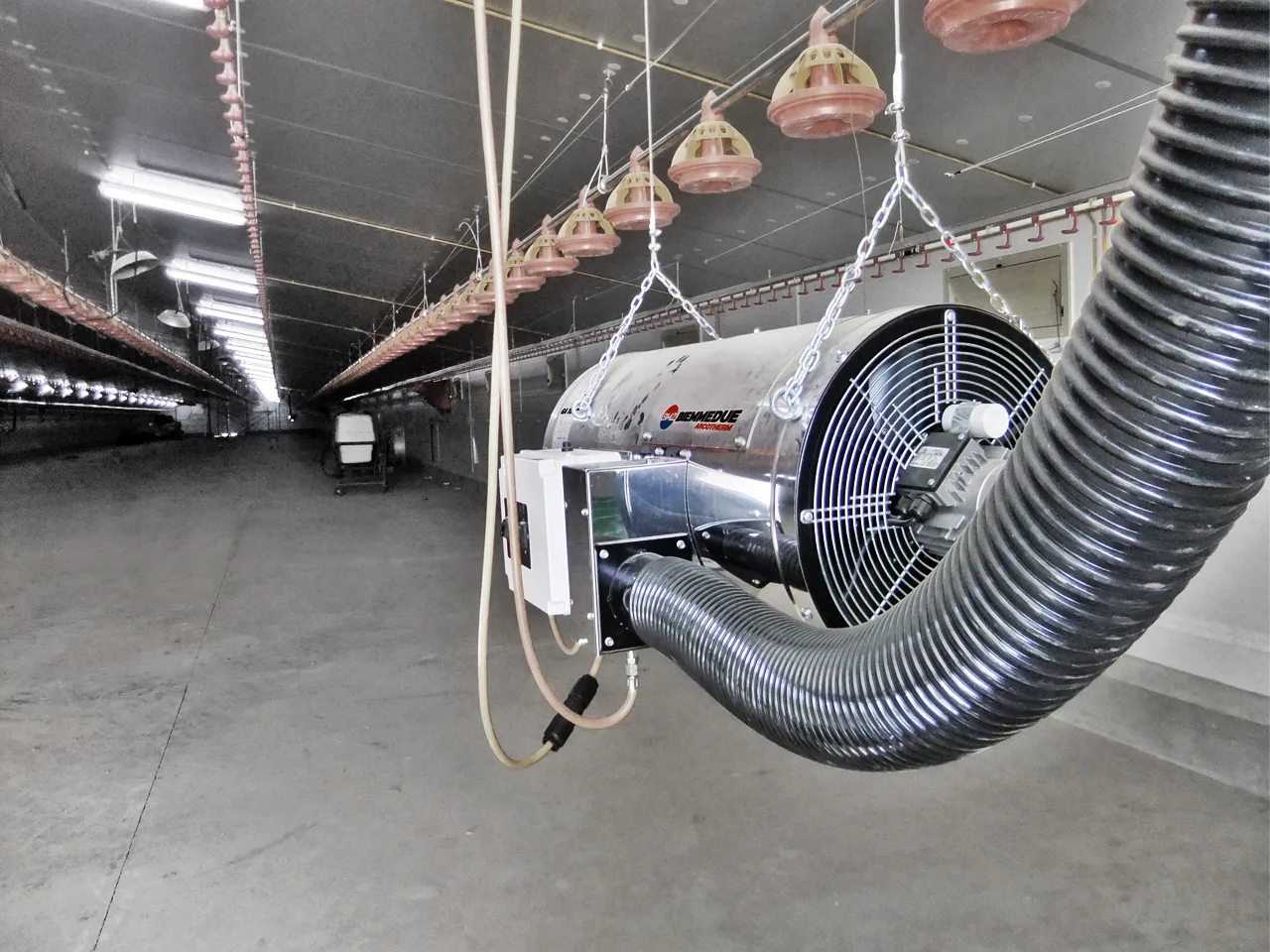

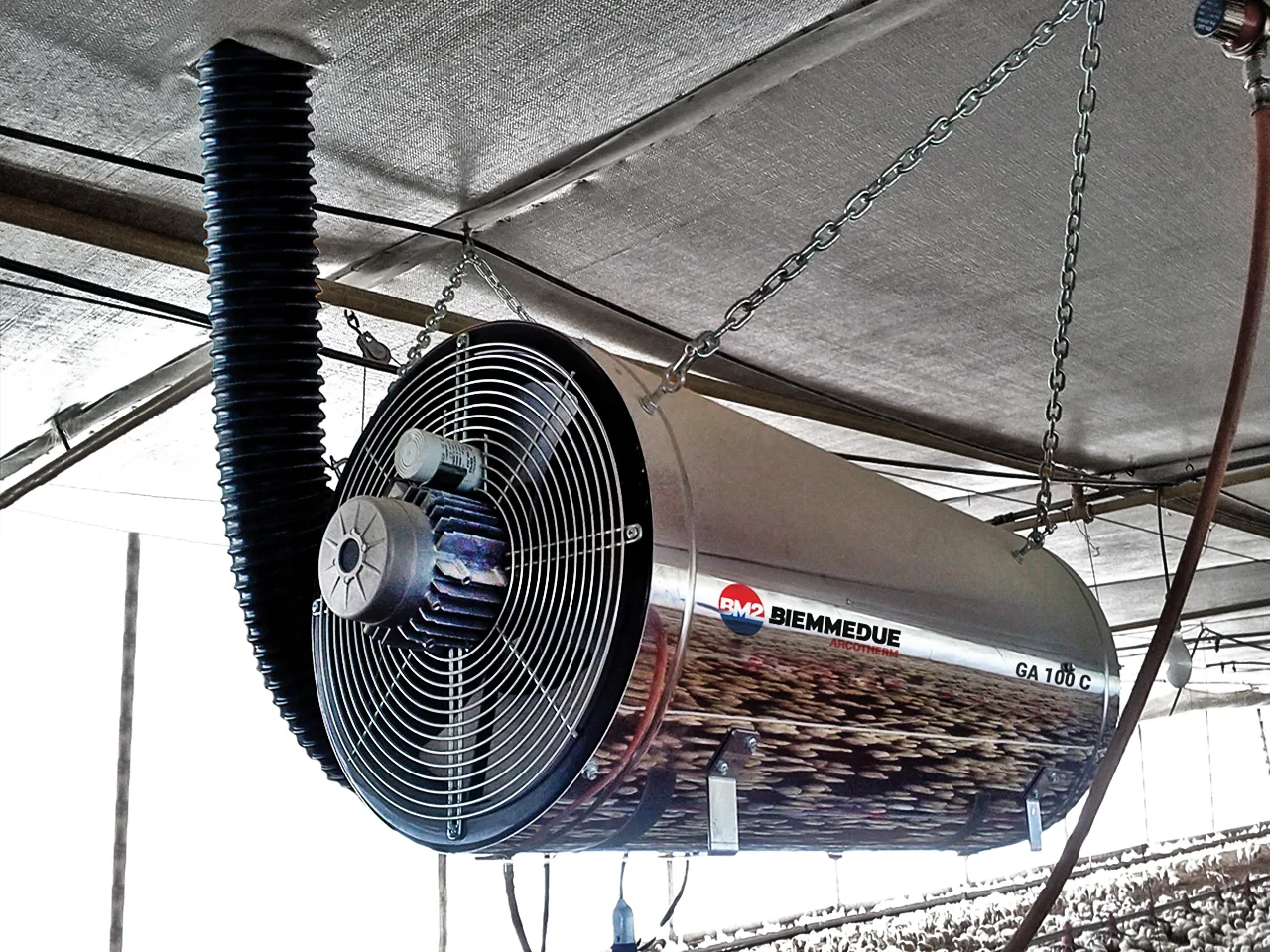

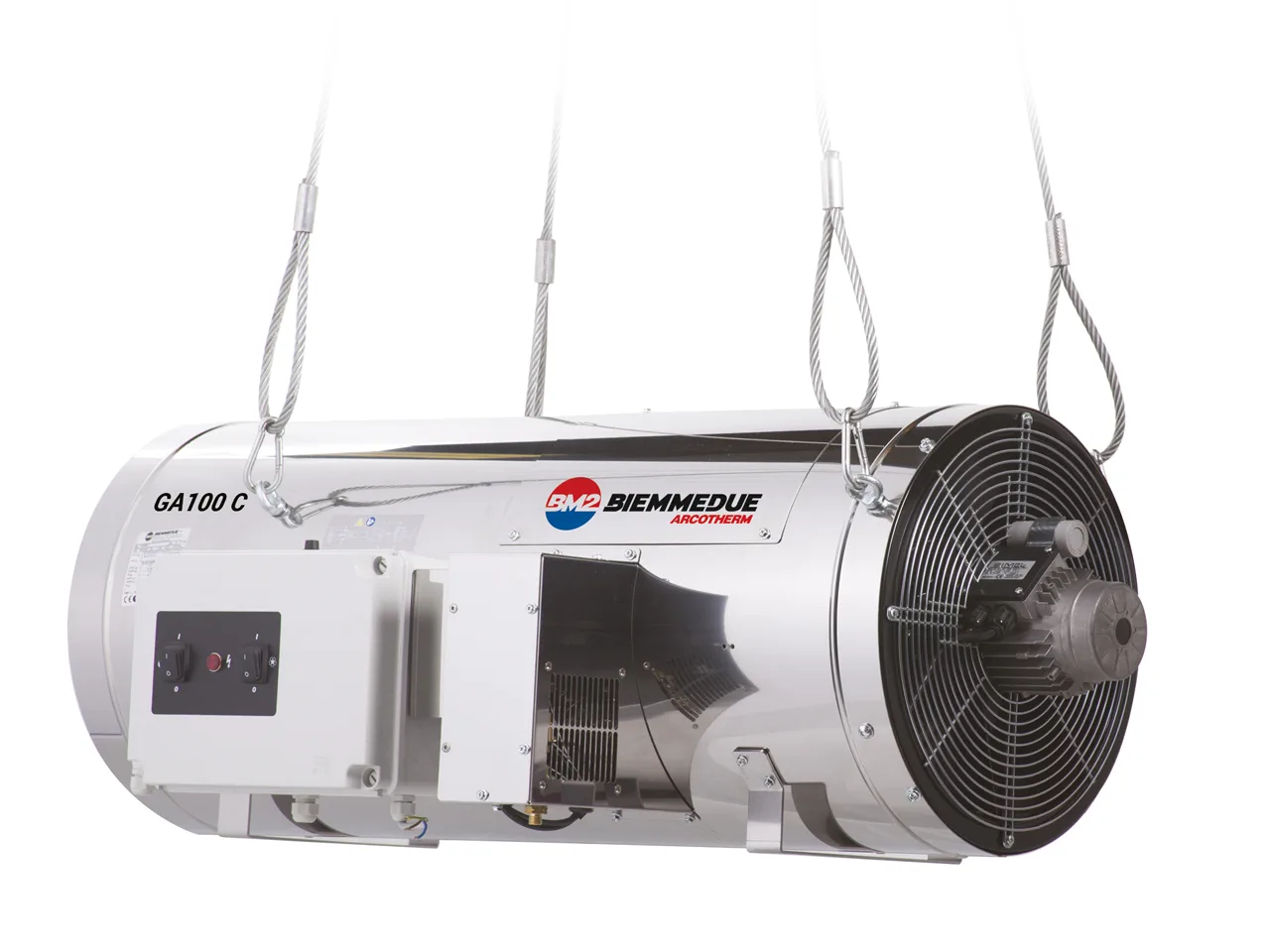

Biemmedue GA 100 C Hot Air Generator
Code: 03GA112 · Gas Hot Air Generators (Natural Gas and LPG)
Power: 100 kW Built-in LPG burner Electronic control equipment Electrical panel suitable for damp/dusty environments, IP 65 Ionization flame detector Socket for connection to a thermostat, humidistat or timer

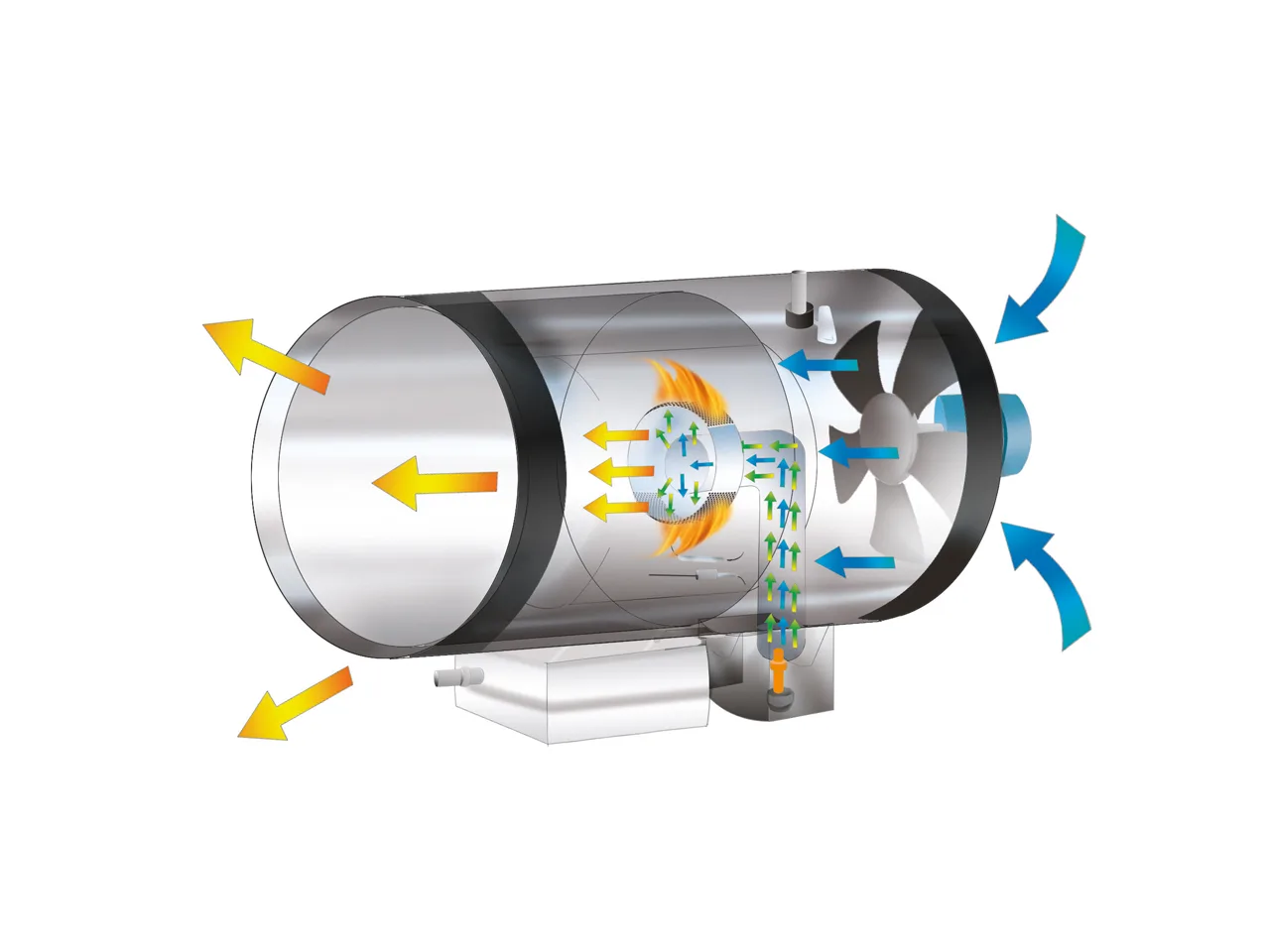

- Combustion type
- Direct (no flue)
- Electrical supply
- single-phase
- Rated power
- 100,38 kW
- Output / efficiency
- 100 %
We help you choose the right model for your application.
Description
- Built-in LPG burner
- Electronic control equipment

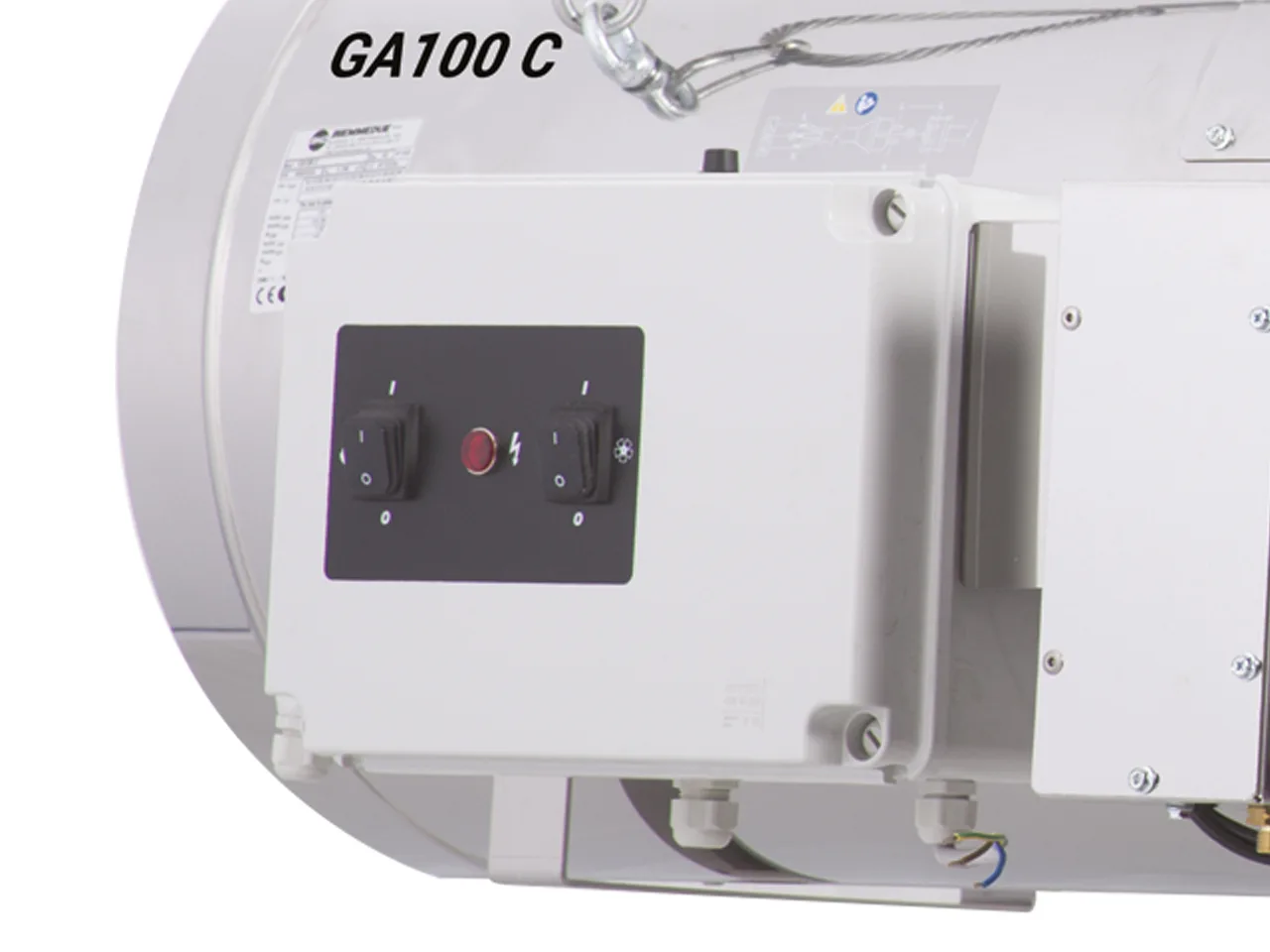

- Electrical panel suitable for damp/dusty environments, IP 65
- Ionization flame detector
- Socket for connection to a thermostat, humidistat or timer
- Safety thermostat
- Electric power cable with plug
- Adjustable pressure reducer (0.5-2 bar)
- Stop-Gas safety valve
- Gas hose with fittings
- Stainless steel outer casing
- Automatic ignition
- Summer/winter switch for use as a fan
Technical specifications
| Combustion type | Direct (no flue) |
|---|---|
| Electrical supply | single-phase |
| Rated power | 100,38 kW |
| Output / efficiency | 100 % |
| Air flow | 5.100 m³/h |
| Temperature rise at 20 °C | 75 |
| Consumption | 3,156 - 6,00 kg/h |
| Electrical power input | 600 W |
| Dimensions | 1146x589x441 mm |
| Machine weight | 36 |
