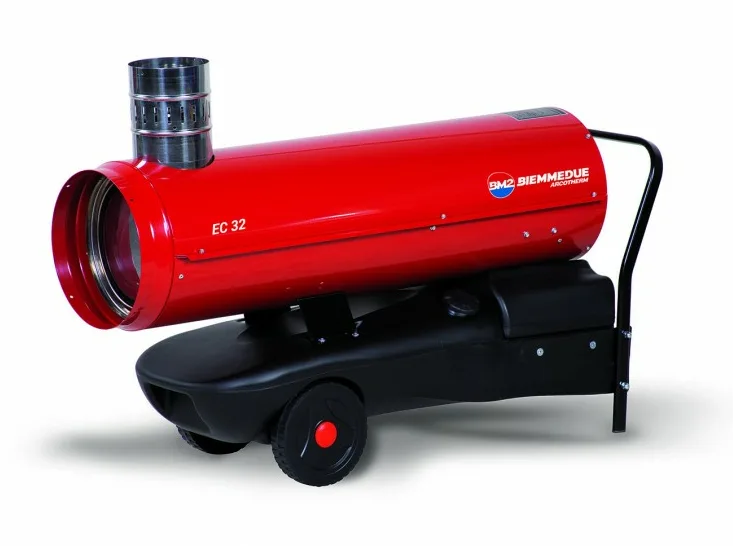

Biemmedue EC 32 Hot Air Generator
Code: 02EC102 · Diesel Hot Air Generators
Power: 32 kW Indirect combustion Automatic diesel burner Socket for connection to a thermostat, humidistat or timer AISI 430 stainless steel combustion chamber; with 3 smoke passes Electric power cable with plug
- Electrical supply
- single-phase
- Combustion type
- Indirect (with flue)
- Rated power
- 34,1 kW
- Output / efficiency
- 84,6 %
We help you choose the right model for your application.
Description
- Automatic diesel burner (Danfoss gear pump)
- Socket for connection to a thermostat, humidistat or timer
- Electric power cable with plug, l = 2 m

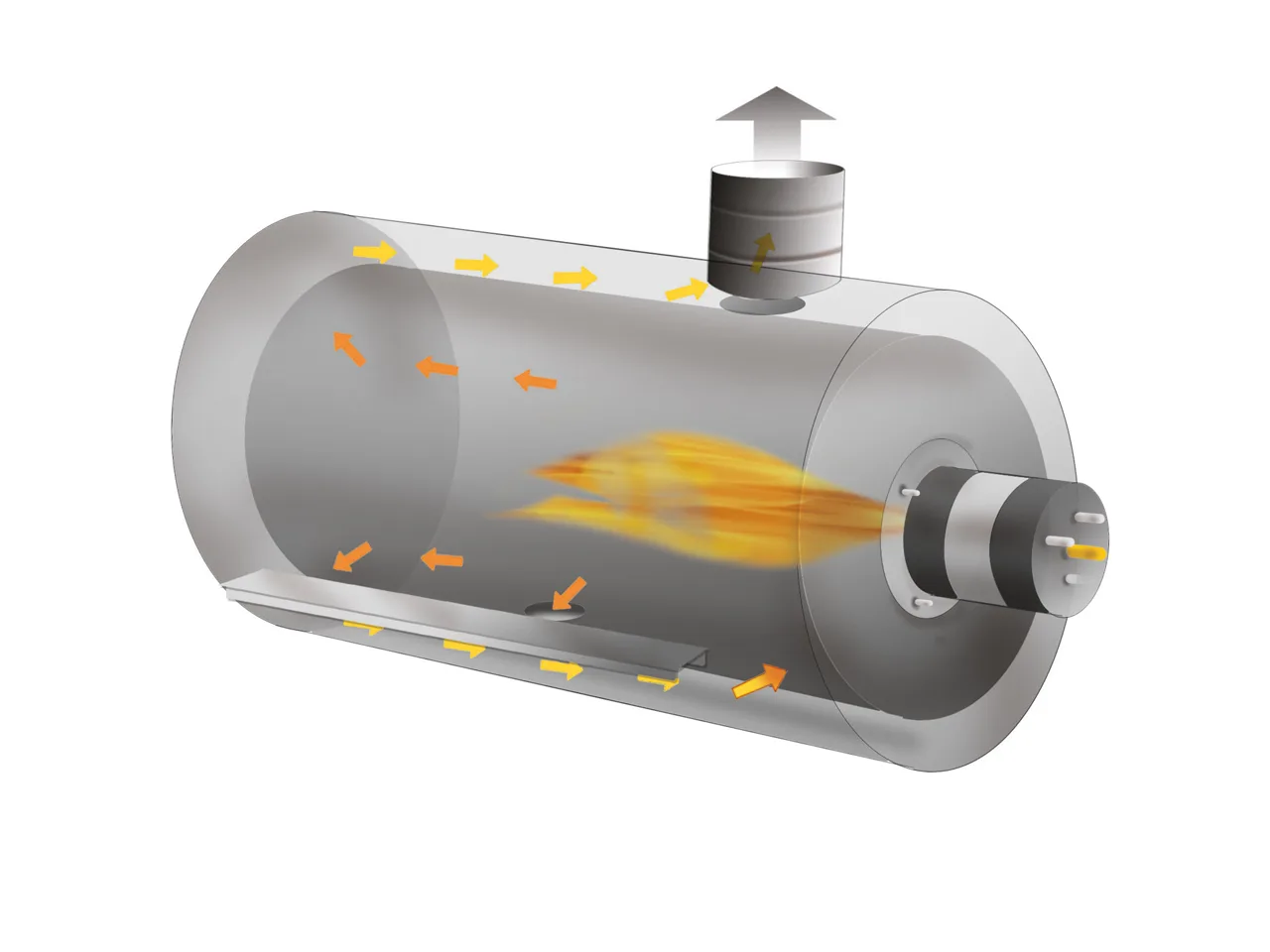

- Combustion chamber made of AISI430 stainless steel; with 3 smoke passes
- Timed post-ventilation system for cooling the combustion chamber
- Electronic flame control
- Overheating thermostat
- Diesel supply hoses made of hydrocarbon-resistant rubber covered with textile material
- Shock-resistant polyethylene tank
- Bayonet-type tank closing cap
- Fuel drain plug on the tank
- Electric control panel
Technical specifications
| Electrical supply | single-phase |
|---|---|
| Combustion type | Indirect (with flue) |
| Rated power | 34,1 kW |
| Output / efficiency | 84,6 % |
| Air flow | 1150 m³/h |
| Temperature rise at 20 °C | 75 |
| Consumption | 2,7 kg/h |
| Tank capacity | 42 l |
| Electrical power input | 370 W |
| Flue diameter | 150 mm |
| Hot air outlet duct diameter | 300 |
| Dimensions | 1.215x690x1025 mm |
| Machine weight | 48 kg |
