Official importer

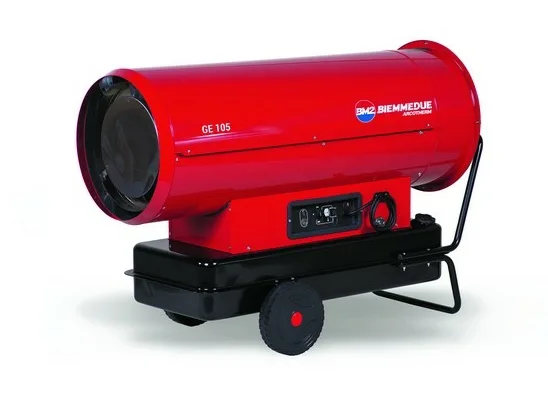

Biemmedue GE 105 Hot Air Generator
Code: 02GE105 · Diesel Hot Air Generators
Power: 105 kW Direct combustion Automatic diesel burner (Danfoss gear pump) Electronic flame control Overheating thermostat
- Electrical supply
- single-phase
- Combustion type
- Direct (no flue)
- Rated power
- 111,1 kW
- Output / efficiency
- 100 %
We help you choose the right model for your application.
Description
- Automatic diesel burner (Danfoss gear pump)
- Electronic flame control
- Overheating thermostat

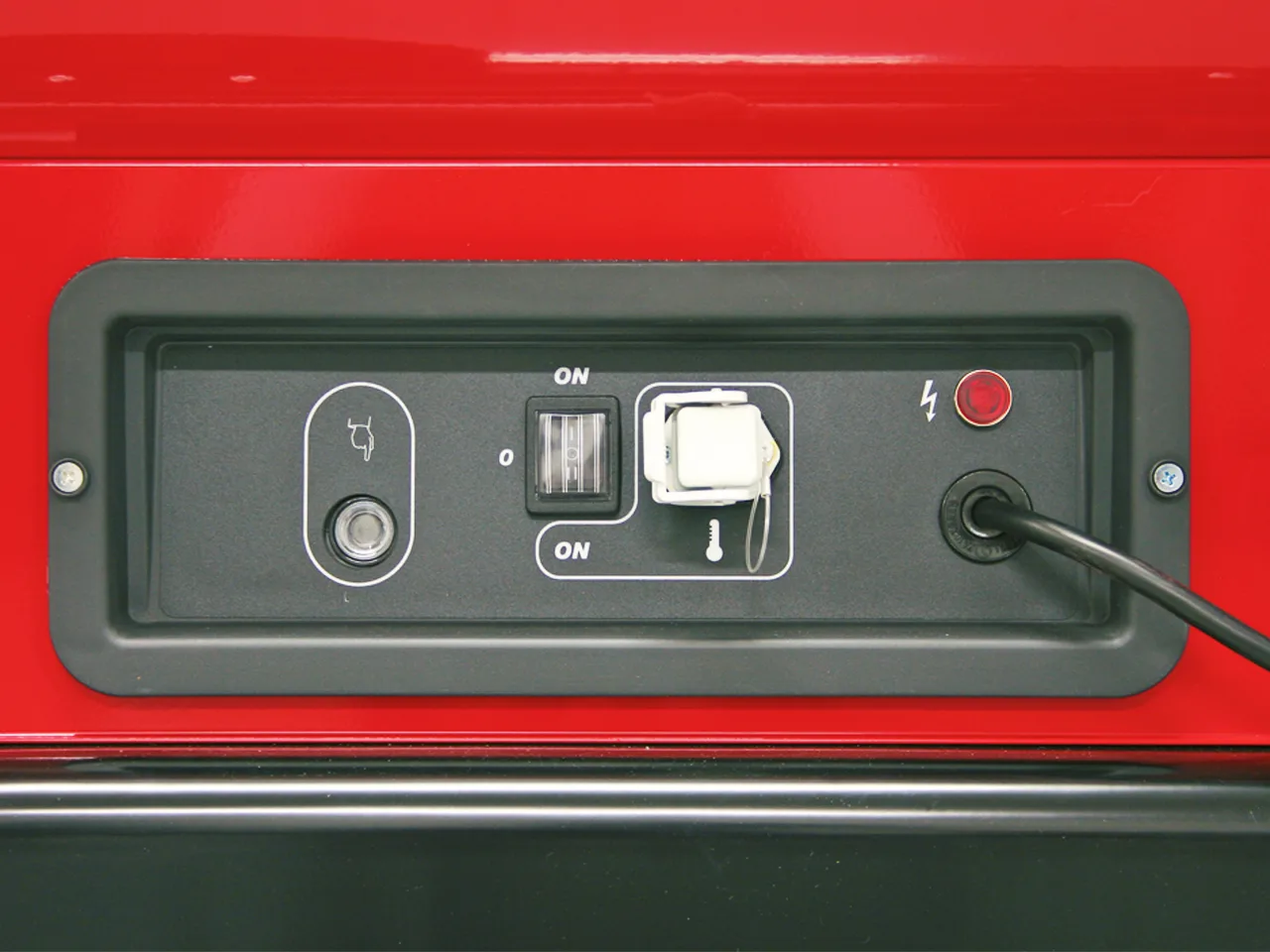

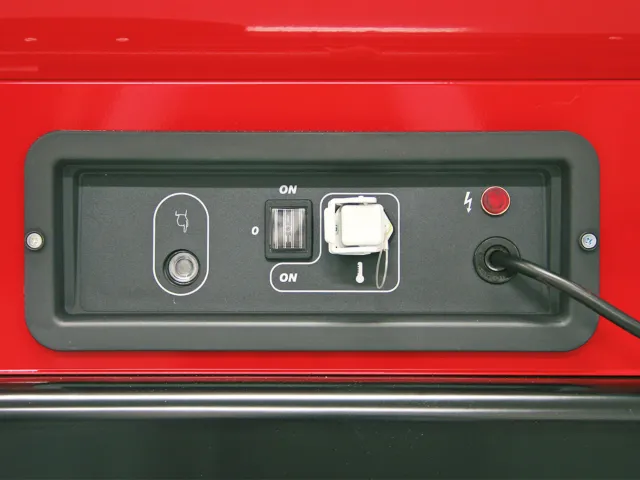

- Socket for connection to a thermostat, humidistat or timer
- Electric power cable with plug, l = 3 m
- Combustion chamber made of AISI 430 stainless steel
- Timed post-ventilation system for cooling the combustion chamber
- Diesel supply hoses made of hydrocarbon-resistant rubber covered with a metal casing
- Steel tank
- Bayonet-type tank closing cap
- Fuel drain plug on the tank
Technical specifications
| Electrical supply | single-phase |
|---|---|
| Combustion type | Direct (no flue) |
| Rated power | 111,1 kW |
| Output / efficiency | 100 % |
| Air flow | 4600 m³/h |
| Temperature rise at 20 °C | 68 |
| Consumption | 8,85 kg/h |
| Tank capacity | 105 l |
| Electrical power input | 1170 W |
| Dimensions | 1492x670x1005 mm |
| Machine weight | 86 |
Get a quote
Request a quote for this product
Fill in the form and we will come back with a quote. The more you tell us about the application, the more accurate the quote.
Biemmedue GE 105 Hot Air Generator
Code 02GE105
