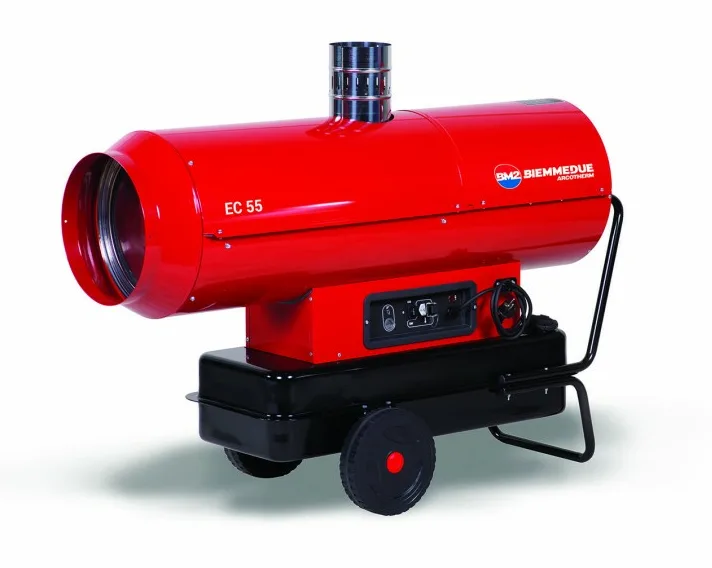

Biemmedue EC 55 Hot Air Generator
Code: 02EC103 · Diesel Hot Air Generators

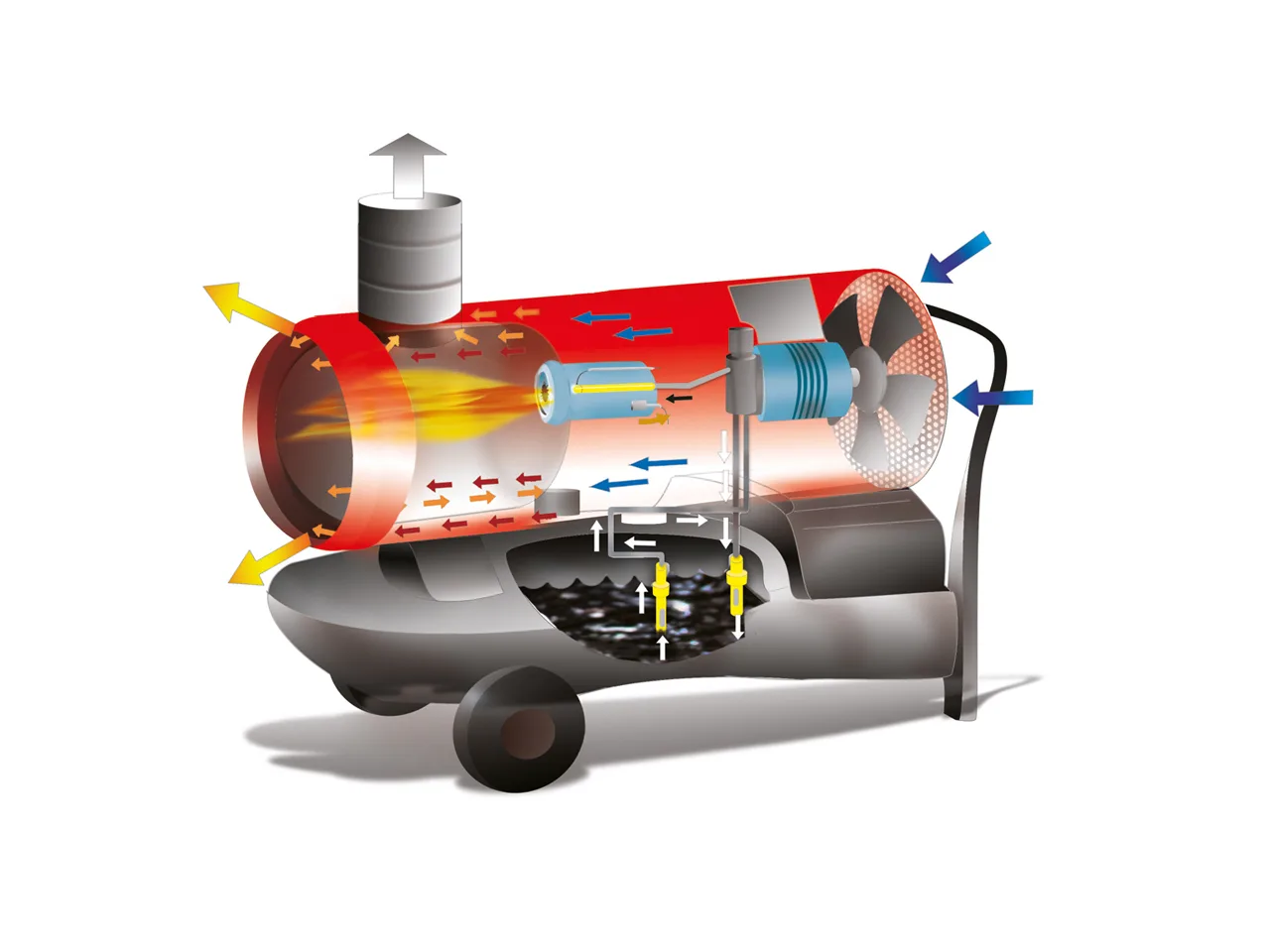

Power: 55 kW Indirect combustion Automatic diesel burner Socket for connection to a thermostat, humidistat or timer AISI 430 stainless steel combustion chamber; with 4 smoke passes Electric power cable with plug
- Electrical supply
- single-phase
- Combustion type
- Indirect (with flue)
- Rated power
- 58,6 kW
- Output / efficiency
- 89,5 %
We help you choose the right model for your application.
Description
- Automatic diesel burner (Danfoss gear pump)
- Socket for connection to a thermostat, humidistat or timer
- Electric power cable with plug, l = 3 m
- Combustion chamber made of AISI430 stainless steel; with 4 smoke passes
- Timed post-ventilation system for cooling the combustion chamber
- Electronic flame control
- Overheating thermostat
- Diesel supply hoses made of hydrocarbon-resistant rubber covered with a metal casing
- Steel tank
- Bayonet-type tank closing cap
- Fuel drain plug on the tank
- Electric control panel
Technical specifications
| Electrical supply | single-phase |
|---|---|
| Combustion type | Indirect (with flue) |
| Rated power | 58,6 kW |
| Output / efficiency | 89,5 % |
| Air flow | 2500 m³/h |
| Temperature rise at 20 °C | 66 |
| Consumption | 4,64 kg/h |
| Tank capacity | 65 l |
| Electrical power input | 850 W |
| Flue diameter | 150 mm |
| Hot air outlet duct diameter | 350-300 |
| Dimensions | 1.435x555x940 mm |
| Machine weight | 81 kg |
