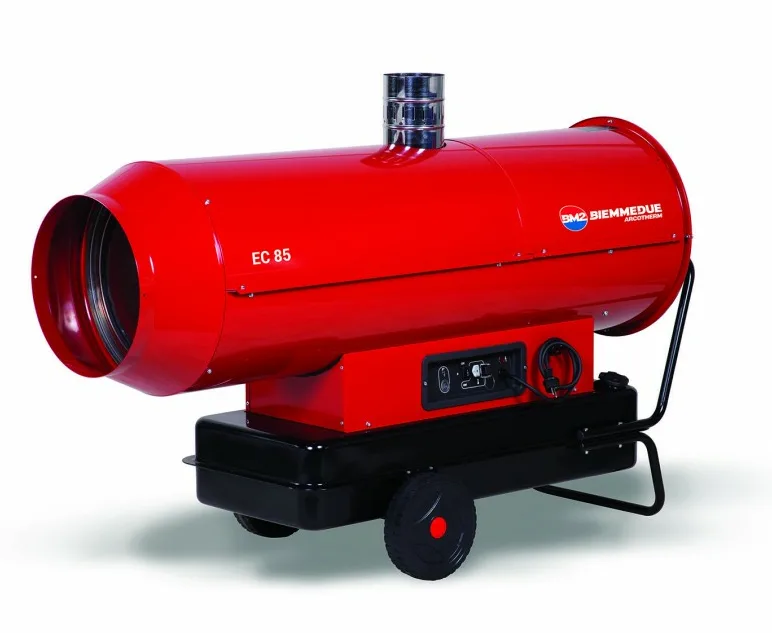

Biemmedue EC 85 Hot Air Generator
Code: 02EC104 · Diesel Hot Air Generators
Power: 85 kW Indirect combustion Automatic diesel burner Socket for connection to a thermostat, humidistat or timer Combustion chamber made of AISI 430 stainless steel; with 4 flue gas passes Electric power cable with plug
- Electrical supply
- single-phase
- Combustion type
- Indirect (with flue)
- Rated power
- 90,6 kW
- Output / efficiency
- 88,5 %
We help you choose the right model for your application.
Description
- Automatic diesel burner (Danfoss gear pump)
- Socket for connection to a thermostat, humidistat or timer
- Electric power cable with plug, l = 3 m

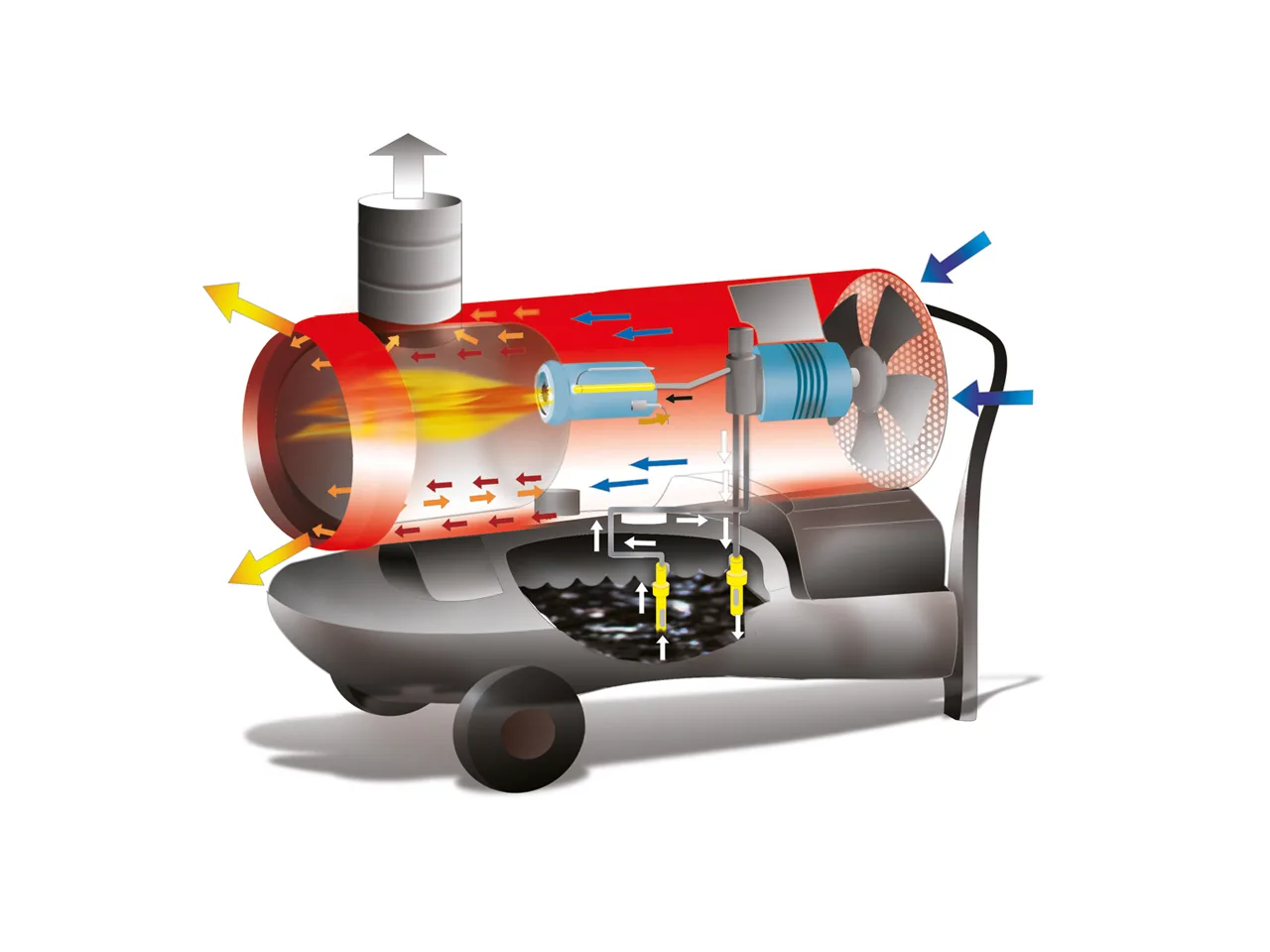

- Combustion chamber made of AISI 430 stainless steel; with 4 flue gas passes
- Timed post-ventilation system for cooling the combustion chamber
- Electronic flame control
- Overheat thermostat
- Diesel supply hoses made of hydrocarbon-resistant rubber, covered with a metal sheath
- Steel tank
- Bayonet-type tank closing cap
- Fuel drain plug
- Electric control panel
Technical specifications
| Electrical supply | single-phase |
|---|---|
| Combustion type | Indirect (with flue) |
| Rated power | 90,6 kW |
| Output / efficiency | 88,5 % |
| Air flow | 4300 m³/h |
| Temperature rise at 20 °C | 77 |
| Consumption | 7,17 kg/h |
| Tank capacity | 105 l |
| Electrical power input | 1140 W |
| Flue diameter | 150 mm |
| Hot air outlet duct diameter | 400-300 |
| Dimensions | 1.740x690x1025 mm |
| Machine weight | 110 kg |
