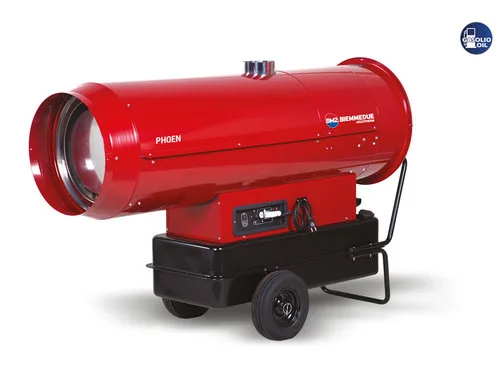

Biemmedue PHOEN 110 Hot Air Generator
Code: 02EC110 · Diesel Hot Air Generators
Power: 110 kW Indirect combustion Automatic diesel burner Socket for connection to a thermostat, humidistat or timer Combustion chamber made of AISI 430 stainless steel; with 4 flue gas passes Electric power cable with plug
- Electrical supply
- single-phase
- Combustion type
- Indirect (with flue)
- Rated power
- 110,2 kW
- Output / efficiency
- 90 %
We help you choose the right model for your application.
Description
- Automatic diesel burner (Danfoss gear pump)
- Socket for connection to a thermostat, humidistat or timer
- Electric power cable with plug, l = 3 m
- Combustion chamber made of AISI 430 stainless steel; with 4 flue gas passes
- Timed post-ventilation system for cooling the combustion chamber
- Electronic flame control
- Overheat thermostat
- Diesel supply hoses made of hydrocarbon-resistant rubber, covered with a metal sheath
- Steel tank
- Bayonet-type tank closing cap
- Fuel drain plug
- Electric control panel
- Dedicated BM2 burner, separate from the fan
- Power selector: stage 1° (75 kW), stage 2° (110 kW)
- Socket for connection to a thermostat, humidistat or timer
- Electric power cable with plug (l = 3 m)
- Combustion chamber made of AISI 430 stainless steel; with 3 flue gas passes
- Fan thermostat: starts/stops the fan only when the combustion chamber is hot/cold
- Electronic flame control
- Overheat thermostat, limit thermostat
- Diesel supply hoses made of hydrocarbon-resistant rubber with metal sheath
- Bayonet-type tank closing cap
- Fuel drain plug
- Summer/winter switch for use as a fan
Technical specifications
| Electrical supply | single-phase |
|---|---|
| Combustion type | Indirect (with flue) |
| Rated power | 110,2 kW |
| Output / efficiency | 90 % |
| Air flow | 5300 m³/h |
| Temperature rise at 20 °C | Stage 1 - 60, Stage 2 - 75 |
| Consumption | 6,33/9,27 kg/h |
| Tank capacity | 135 l |
| Electrical power input | 1820 W |
| Flue diameter | 150 mm |
| Hot air outlet duct diameter | 500-400 |
| Dimensions | 1.918x731x1.220 mm |
| Machine weight | 149 kg |
