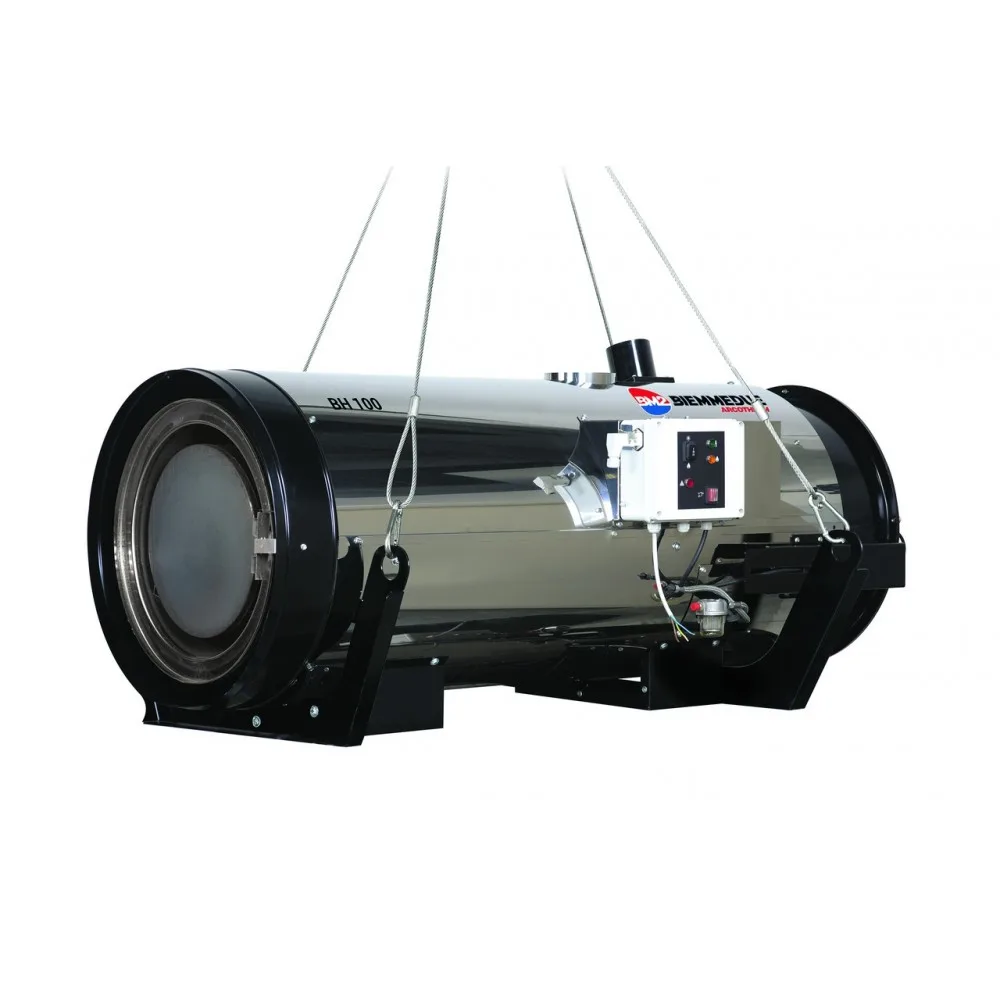

Biemmedue BH 100 OIL (Diesel) Suspended Hot Air Generator

Code: 02BH121 · Suspended Hot Air Generators

Power: 100 kW Internal and external structure made of AISI 430 stainless steel Separate automatic diesel burner Tilting fan to facilitate burner maintenance/replacement Electronic flame control

Electrical supply: single-phase
Combustion type: Indirect (with flue)
Rated power: 99,80 kW
Output / efficiency: 90 %

Request a quote for this product E-mail

We help you choose the right model for your application.

Description

Internal and external structure made of AISI 430 stainless steel
Separate automatic diesel burner
Tilting fan to facilitate burner maintenance/replacement
Electronic flame control
Automatic FAN thermostat to blow only hot air, with combustion chamber pre-heating and post-ventilation for cooling
Automatic LIMIT thermostat for burner control
OVERHEATING safety thermostat with manual reset
Summer/winter switch for use as a fan
Safety pressure switch (air and gas)
Combustion chamber made of AISI 430 stainless steel with four flue gas passes
IP65 protected electrical panel
Can be connected to a thermostat, humidistat or timer
Can be connected to the air conditioning system
Gas train: complete valve group with gas filter, pressure regulator, safety valve, slow-opening working valve, stabilizer, gas pressure connector
Snorkel connector for clean air intake from outside

Technical specifications

Technical specifications — Biemmedue BH 100 OIL (Diesel) Suspended Hot Air Generator
Electrical supply	single-phase
Combustion type	Indirect (with flue)
Rated power	99,80 kW
Output / efficiency	90 %
Air flow	7.500 m³/h
Temperature rise at 20 °C	55
Consumption	7,9 kg/h
Electrical power input	1000 W
Flue diameter	150 mm
Hot air outlet duct diameter	650 mm - max. length 30 m
Dimensions	1.781x804x696 mm
Machine weight	135
