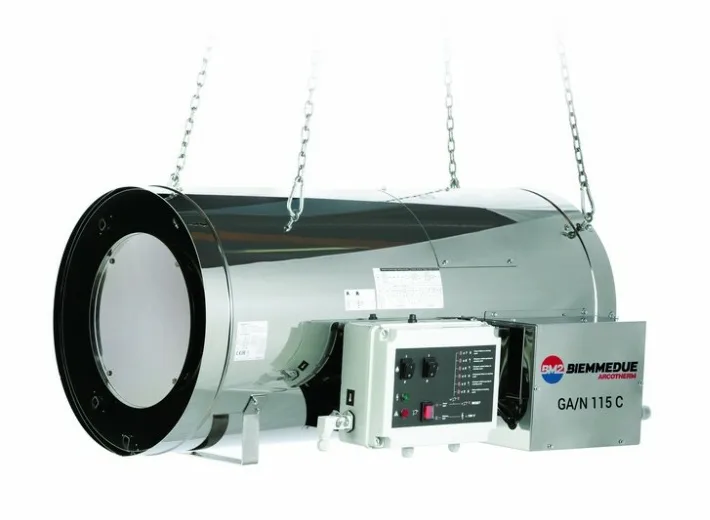

Biemmedue GA/N 115 C Suspended Hot Air Generator

Code: 03GA551 · Suspended Hot Air Generators

Power: 115 kW Built-in automatic LPG or methane burner with low CO, NOx and ethylene emissions IP 65 electrical panel Socket for connection to a thermostat, humidistat or timer Stainless steel outer casing Automatic ignition

Electrical supply: single-phase
Combustion type: Direct (no flue)
Rated power: 117,13 kW
Output / efficiency: 100 %

Request a quote for this product E-mail

We help you choose the right model for your application.

Description

Built-in automatic LPG or methane burner with low CO, NOx and ethylene emissions

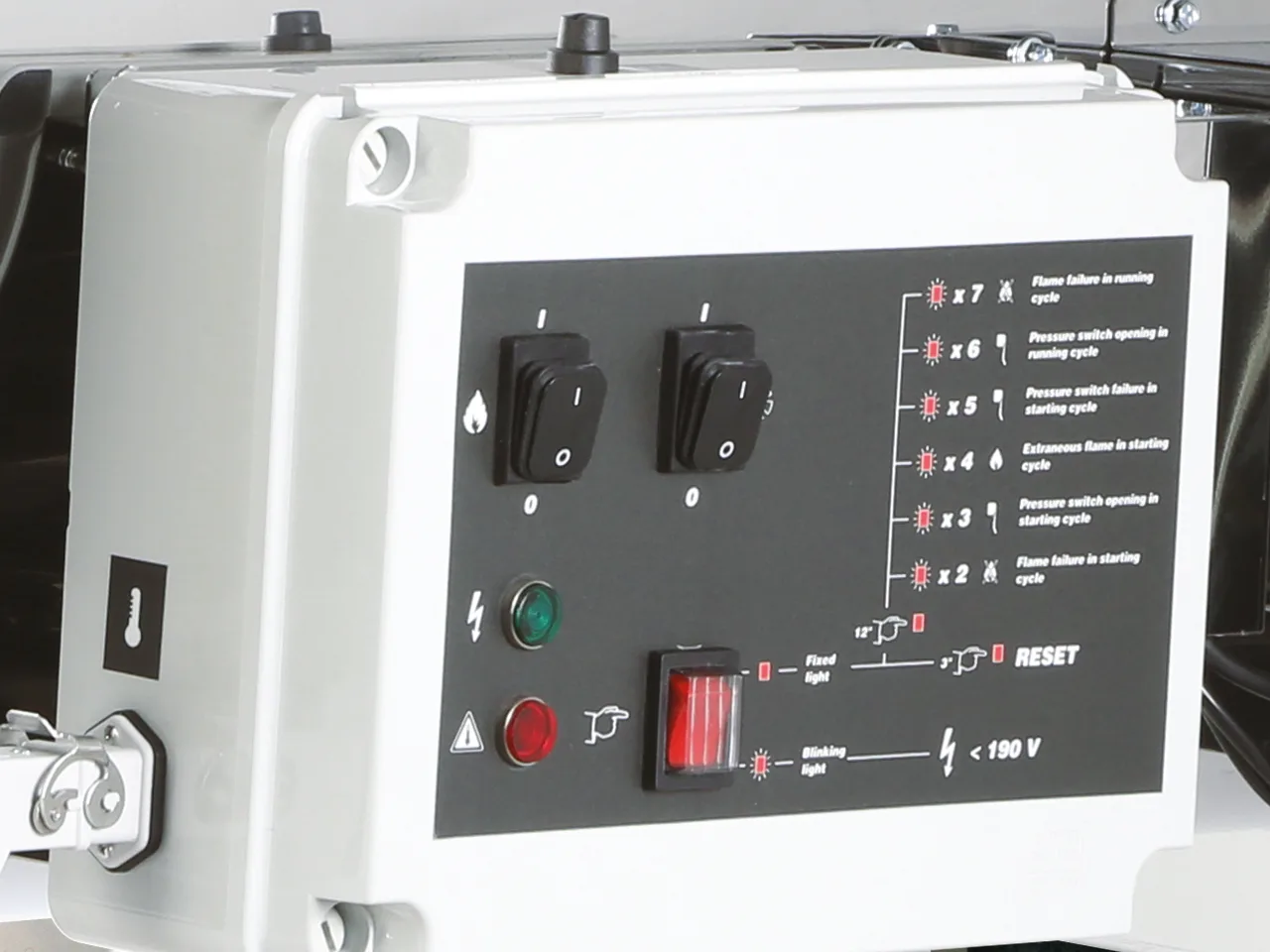

IP 65 electrical panel
Socket for connection to a thermostat, humidistat or timer
Stainless steel outer casing
Automatic ignition
Flame control with ionization electrode
Safety thermostat
Connection system for a centralized air conditioning system
Fan air pressure monitoring with IP 65 vane switch
Gas train: gas filter, gas pressure regulator, safety valve, soft-opening working valve, stabilizer, pressure test port
IP55 motor installed in an exposed position for easy maintenance and to avoid overheating
Continuous post-ventilation system (fan always on) or timed (30 seconds)
Summer/winter switch for use as a fan
Compliant with UNI EN 12669:2003 standards
Suspension hooks

Technical specifications

Technical specifications — Biemmedue GA/N 115 C Suspended Hot Air Generator
Electrical supply	single-phase
Combustion type	Direct (no flue)
Rated power	117,13 kW
Output / efficiency	100 %
Air flow	8.700 m³/h
Temperature rise at 20 °C	50
Consumption	G20 - 10,667 m³/h, G31 - 4,203 m³/h - 8,29 kg/h
Electrical power input	980 W
Dimensions	1187x684x535 mm
Machine weight	56
