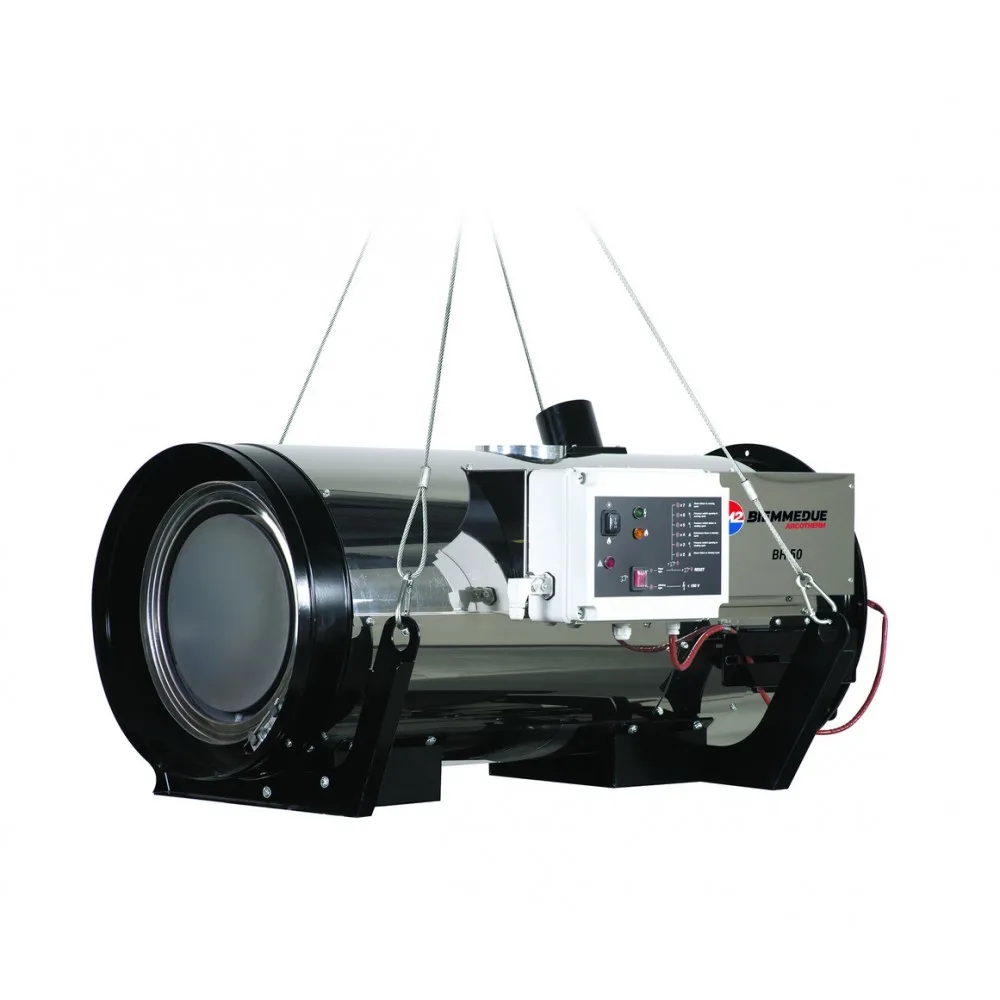

Biemmedue BH 50 OIL (Diesel) Suspended Hot Air Generator

Code: 02BH111 · Suspended Hot Air Generators

Power: 50 kW Internal and external structure made of AISI 430 stainless steel Separate automatic diesel burner Tilting fan to facilitate burner maintenance/replacement Electronic flame control

Combustion type: Indirect (with flue)
Electrical supply: single-phase
Rated power: 49.80 kW
Output / efficiency: 89 %

Request a quote for this product E-mail

We help you choose the right model for your application.

Description

Internal and external structure made of AISI 430 stainless steel
Separate automatic diesel burner
Tilting fan to facilitate burner maintenance/replacement
Electronic flame control
Automatic FAN thermostat to blow only hot air, with combustion chamber pre-heating and post-ventilation for cooling
Automatic LIMIT thermostat for burner control
OVERHEATING safety thermostat with manual reset
Summer/winter switch for use as a fan
Safety pressure switch (air and gas)
Combustion chamber made of AISI 430 stainless steel with four flue gas passes
IP65 protected electrical panel
Can be connected to a thermostat, humidistat or timer
Can be connected to the air conditioning system
Gas train: complete valve group with gas filter, pressure regulator, safety valve, slow-opening working valve, stabilizer, gas pressure connector
Snorkel connector for clean air intake from outside

Technical specifications

Technical specifications — Biemmedue BH 50 OIL (Diesel) Suspended Hot Air Generator
Combustion type	Indirect (with flue)
Electrical supply	single-phase
Rated power	49.80 kW
Output / efficiency	89 %
Air flow	4.100 m³/h
Temperature rise at 20 °C	50
Consumption	3,94 kg/h
Electrical power input	750 W
Flue diameter	150 mm
Hot air outlet duct diameter	500 mm
Dimensions	1.379x680x563 mm
Machine weight	75
